TurboV EVO also has an automatic overclocking mode - B CLK frequency grows by 2 MHz each step, voltages slightly increased if necessary, then the system runs a quick stability test and makes another step until a computer freezes. You can watch our TurboV EVO demo in this video clip: Besides, TurboV Remote can be used to increase and decrease B CLK frequency at 1MHz steps.
#ASUS P7P55D CPU LED INSTALL#
If three of such profiles are then assigned to Turbo Keys, it will be easy to switch between them using TurboV Remote (if you didn't install this remote control, you can assign these profiles to buttons). It goes without saying that a user can specify all these parameters manually, saving the best configurations into custom profiles. In its simplest mode the program allows to specify B CLK frequency, and then it automatically sets voltages for processor cores, integrated memory controller, and DIMM modules sufficient for this overclocking level. It provides enhanced monitoring of system voltages and has several overclocking modes. In return, TurboV EVO has become a very interesting product.
#ASUS P7P55D CPU LED PC#
AI Suite and PC Probe II offer poor monitoring features, they are practically useless for this motherboard. Only TurboV is responsible for overclocking (and monitoring) now. In fact, the only useful utilities left there are Fan Xpert and EPU-6 Engine, although it can be installed and tarted separately. Flexible fan controls are provided by the Fan Xpert utility.ĪI Suite functionality has been significantly reduced in this case. But you can choose only one of Q-Fan profiles.

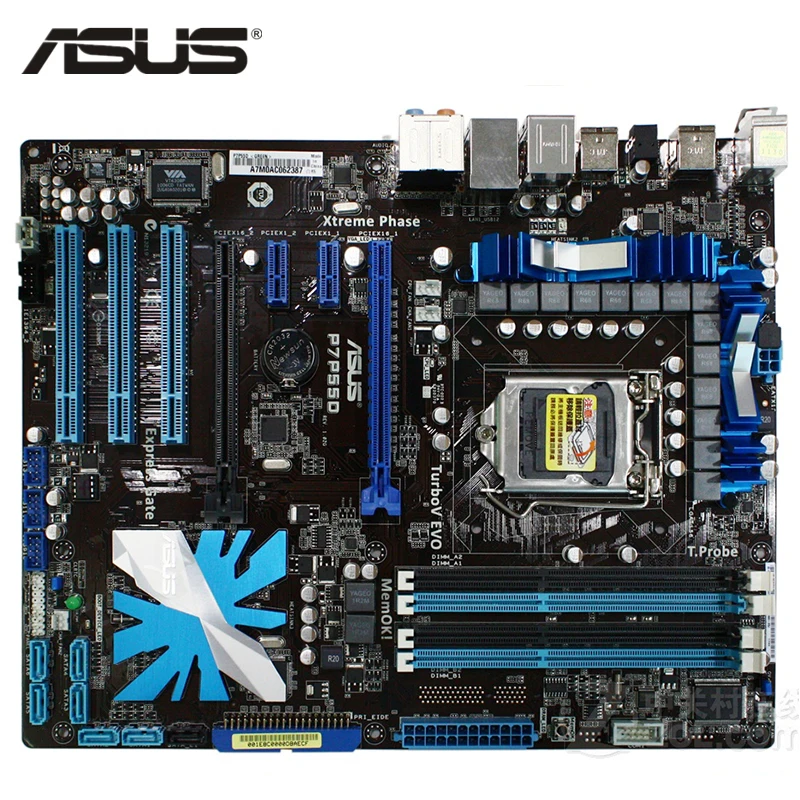

Besides, BIOS Setup offers automatic fan speed control for a CPU cooler and a couple of case fans. And jumpers near them allow to increase maximum limits for these voltages. Three onboard LEDs indicate increased voltage on the processor core, memory controller, and memory. Monitoring features implemented in BIOS Setup have been noticeably expanded, compared to regular models, but only for system voltages: along with the processor core and three standard ATX voltages, this motherboard monitors voltage on the integrated memory controller and CPU PLL, as well as memory and chipset voltages. Thus, if you change your memory modules, you won't have even tiny problems, which can be solved by clearing CMOS. Even the first iteration may help in many cases - memory configuration parameters are just reset to the automatic selection, but the motherboard may honestly resort to thorough configuration, when necessary. Each new combination is tested after reboot. When you press a corresponding button, the motherboard will search through memory settings (frequency, timings, voltage). Besides, the motherboard implements the MemOK! technology that helps when you use partially incompatible memory modules. Four onboard LEDs help diagnose problems at startup - each of these LEDs indicates problems with a CPU, memory, graphics card, and a boot device.
